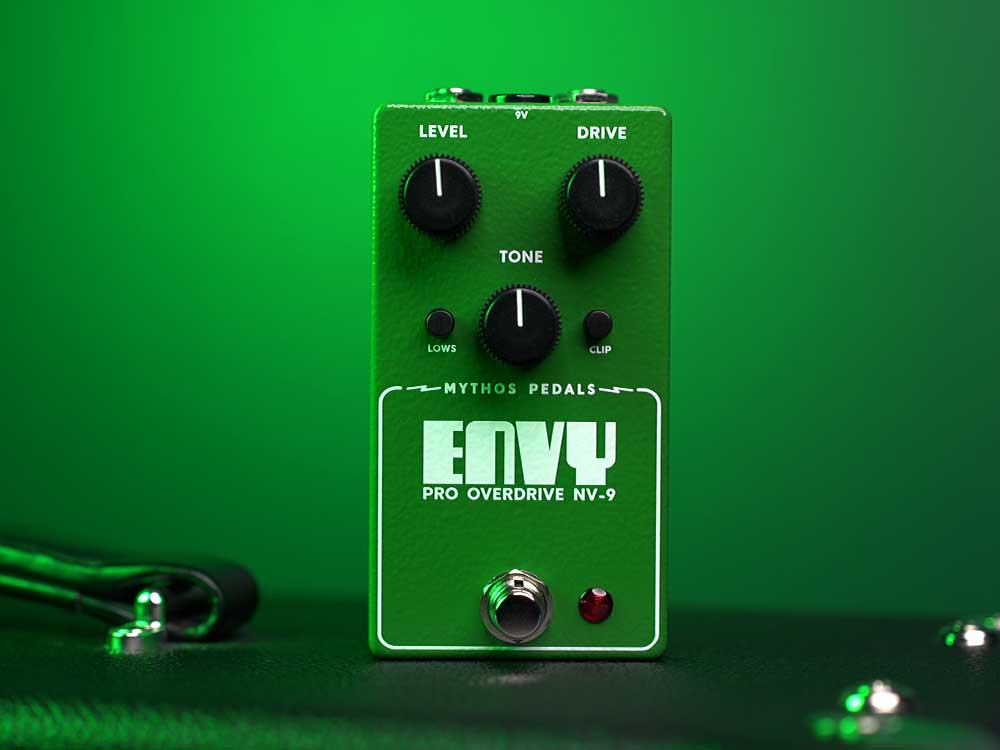

Envy Pro Overdrive NV-9
It was just a matter of time
Inspired by the most iconic pedal of all time
Tweaked just right
The Envy Pro Overdrive is inspired by the various versions of that ever polarizing green stompbox. We aren't trying to reinvent the wheel, but give you the best that this circuit has to offer.
With its increased output, expanded drive range, and thickened low end, the Envy takes the TS formula and makes it more useful for every player, regardless of style.
Push it real good

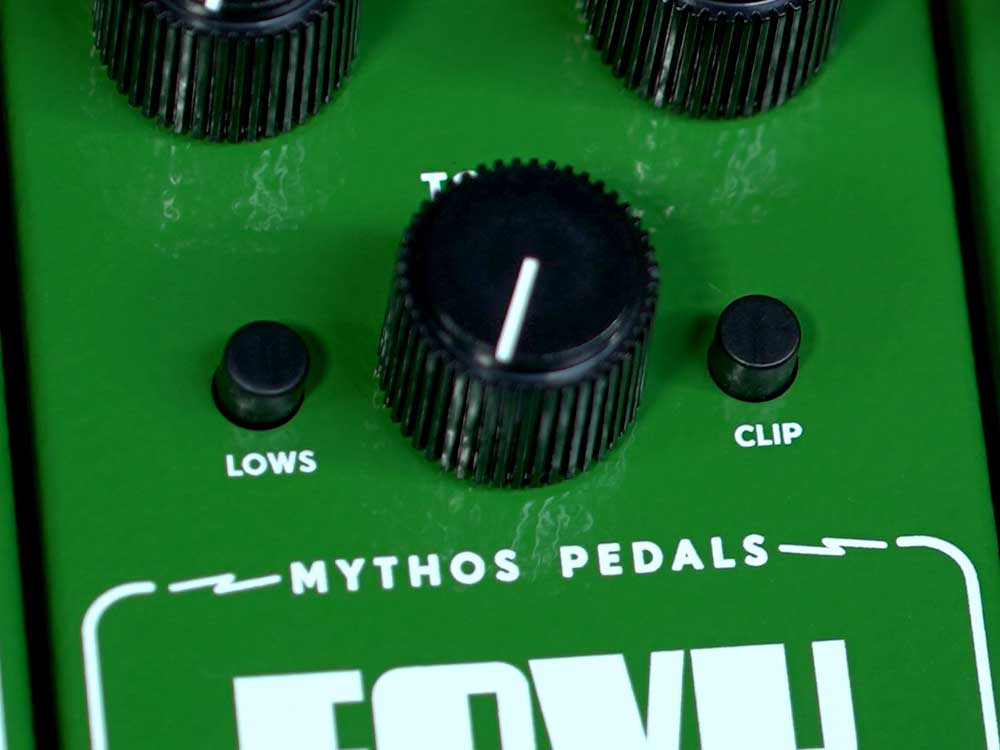

We wanted to give the Envy more options than just 3 knobs and decided on something fun and slightly different - push buttons! The Lows and Clip buttons offer quick adjustments of the circuits most oft tweaked parameters.
With the buttons up the circuit is a more traditional voiced TS style drive. With Lows engaged you increase the amount of low end for a fuller overall sound. When the Clip button is pushed the diodes are disengaged for a louder, less compressed, more open sound.
Through Hole Heart

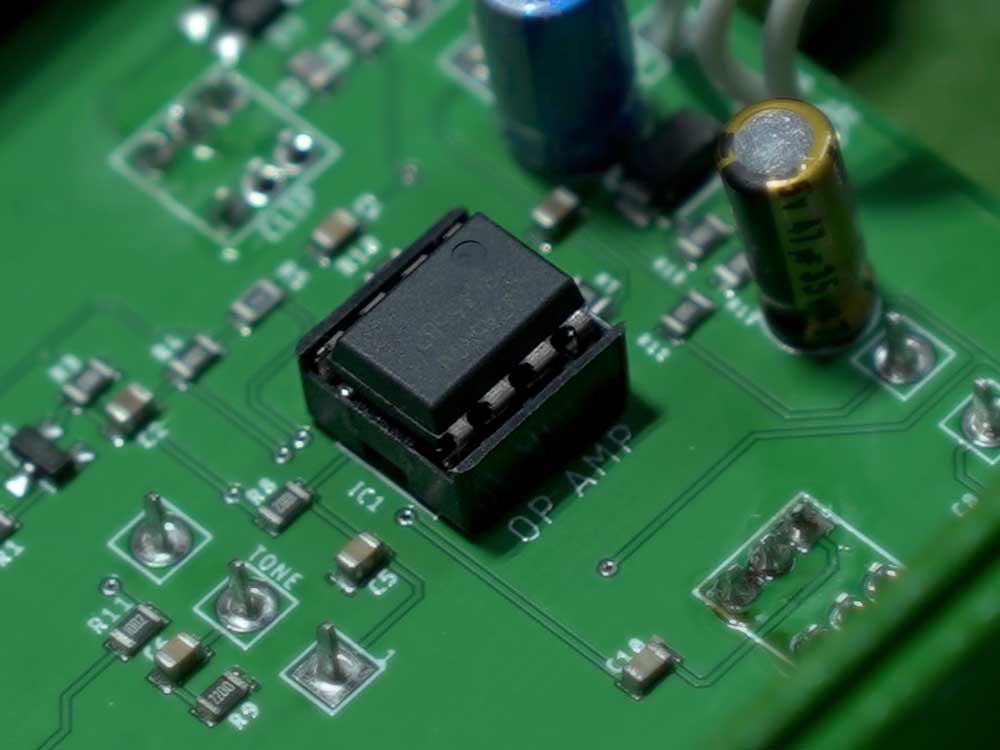

At the core of the Envy Pro Overdrive is a socketed RC4558P Dual Op Amp chip. We did this for one very important reason, experimentation. Zach has said on many occasions that Dual Op Amps don't sound all that different but if you want to experiment with different chips you can do that in the Envy pretty painlessly.
RC4558, JRC4558, TL072, OP275, OPA2604, LM1458N the list goes on!

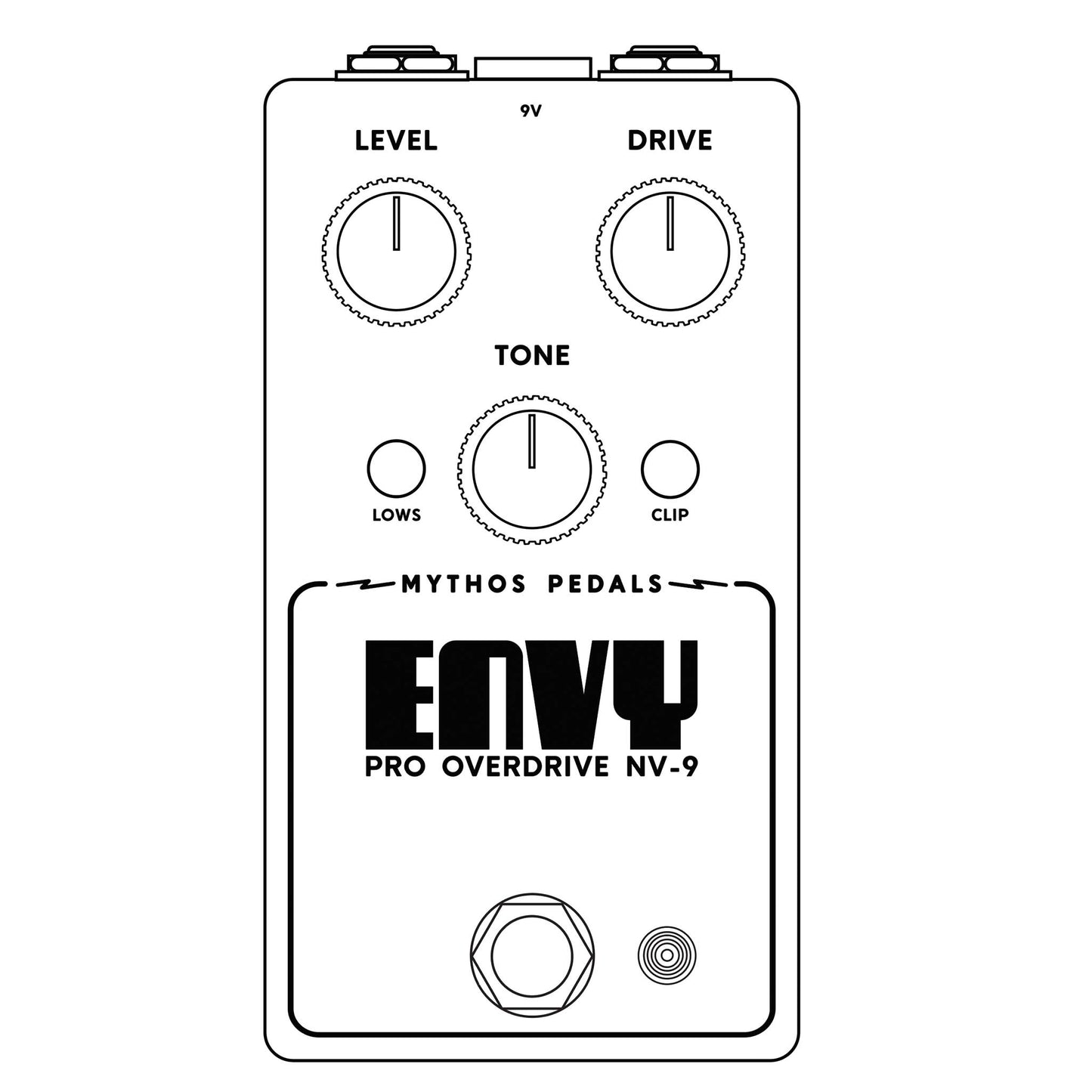

Envy Pro Overdrive Controls
- Level - Adjusts the Output
- Tone - Classic TS Style Tone Circuit
- Drive - Adjust the amount of Overdrive
Push Switches
- Lows - Classic Low End (When Up), Increased Low End (When Pushed Down)
- Clip - Stock TS Soft Clipping (When Up), Diode Lift (When Pushed Down)
Recommended Settings
Flooding in Texas
Grab your Strat and crank it
Nice 'N Thick
Push the Lows and take a solo
There Is No Plan B
Push the Lows and Clip for that signature RS sound.
- Approx. 15 mA Current Draw
- Mono In & Out
- Enclosure size: 4.82" L x 2.62" W x 1.43" H
